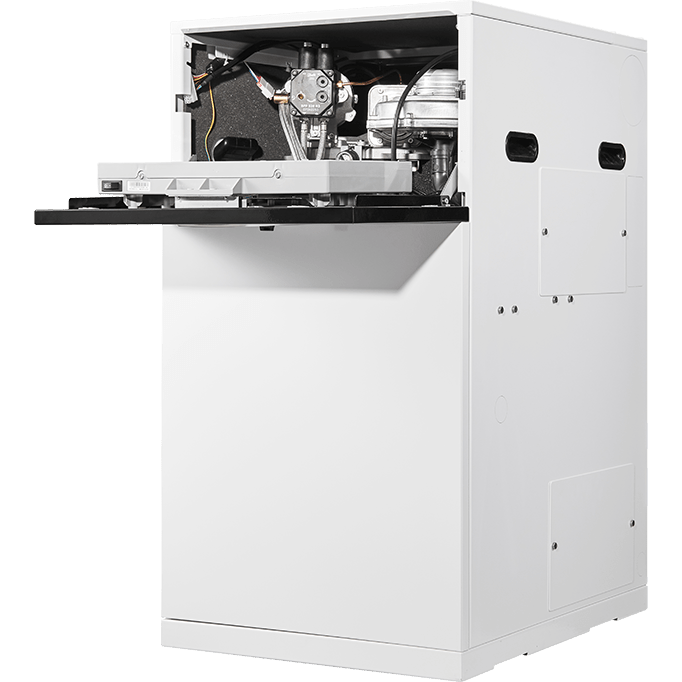

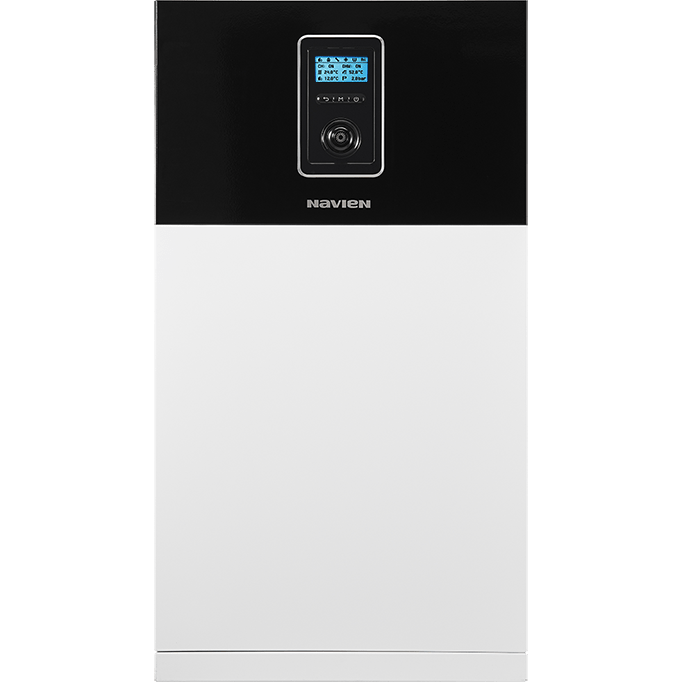

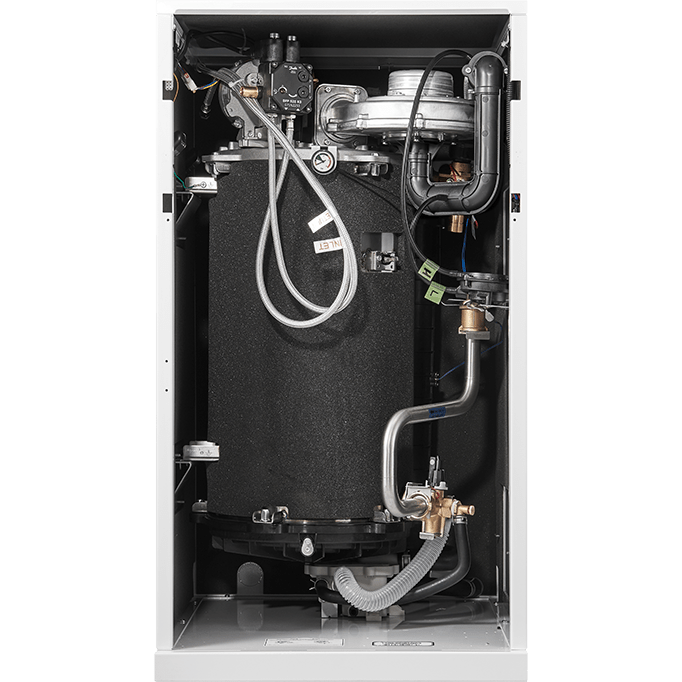

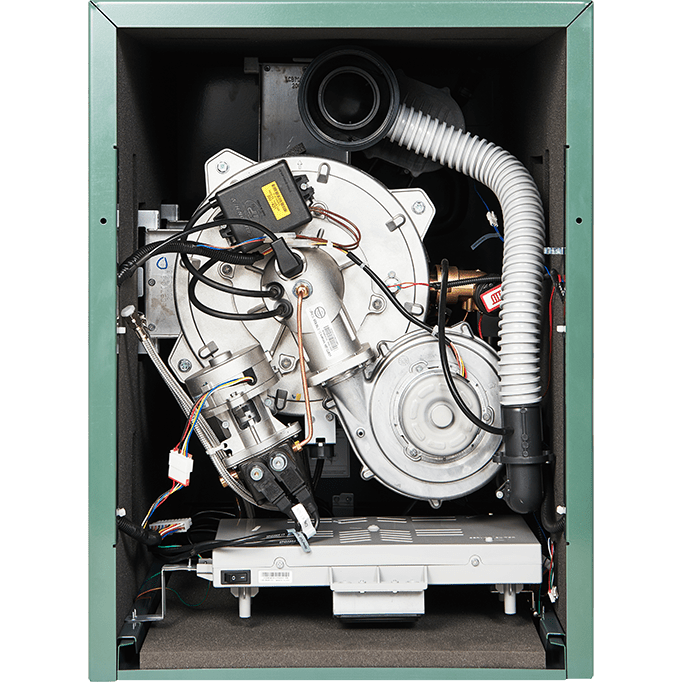

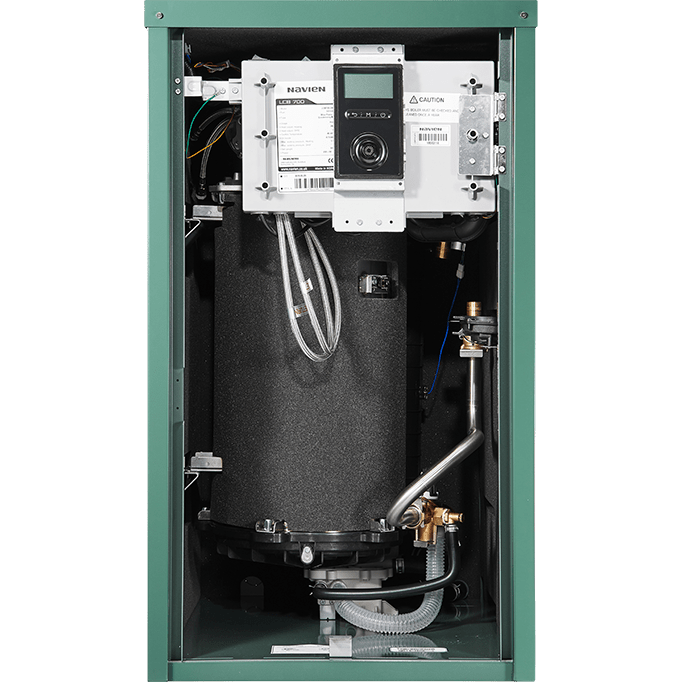

Navien LCB700 Blue Flame 28kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack

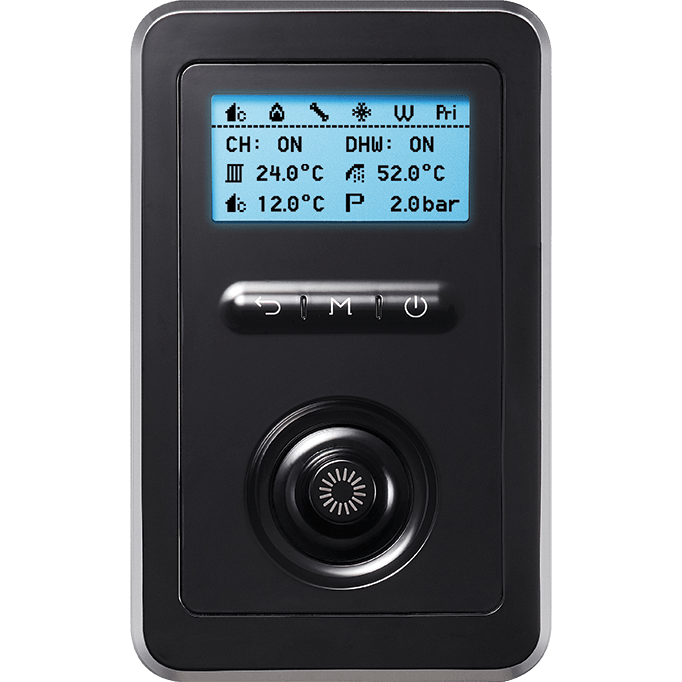

- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0028SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 21/28kW
- Heat Output 50/30°C: 30.3kW
- Maximum Flow Rate (±15%): 18L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
Navien LCB800 Blue Flame 28kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack
- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0028SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 21/28kW
- Heat Output 50/30°C: 30.3kW
- Maximum Flow Rate (±15%): 18L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
Navien LCB900 Blue Flame 28kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack
- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0028SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 21/28kW
- Heat Output 50/30°C: 30.3kW
- Maximum Flow Rate (±15%): 18L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
Navien LCB1000 Blue Flame 28kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack
- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0028SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 21/28kW
- Heat Output 50/30°C: 30.3kW
- Maximum Flow Rate (±15%): 18L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
Navien LCB1100 Blue Flame 28kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack
- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0028SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 21/28kW
- Heat Output 50/30°C: 30.3kW
- Maximum Flow Rate (±15%): 18L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
Navien LCB700 Blue Flame 21kW LC Internal Combi Oil Boiler
The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
Key Features:
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack
- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
- 10-year parts and labour warranty as standard
Technical Specifications:
- Brand: Navien
- Model No: PLCB0021SD001
- Product Type: Combi Oil Boiler
- Heat Output 80/60°C: 16/21kW
- Heat Output 50/30°C: 23.0kW
- Maximum Flow Rate (±15%): 14L/min
- DHW Control Range: 30-60°C (Default 50°C)
- Flue Size: Coaxial Plastic Ø 60/100
- Max Horizontal Length: 20m
- Max Vertical Length: 21m
- Combi Weight: 91 Kg
- ErP Efficiency: ErP A (93%)
- ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
- NOx Emission Rate: 57.2mg/kWh
- Dimensions (Regular/System Model): 600mm x 600mm x 860mm
- Manufacturer Warranty: 10 Years
