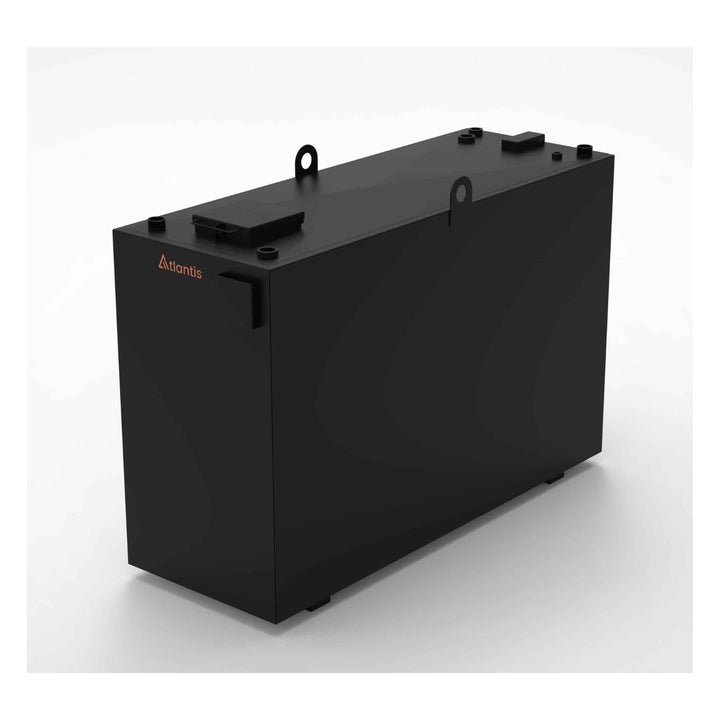

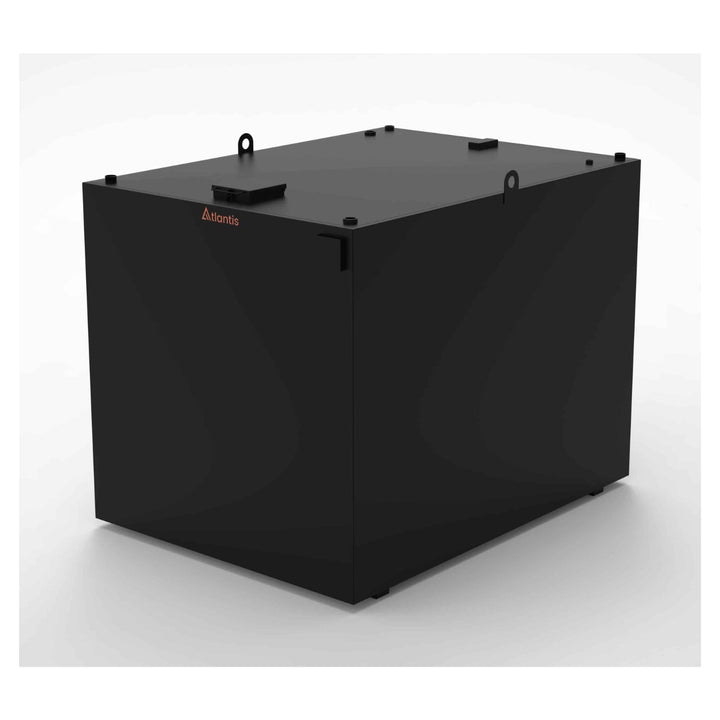

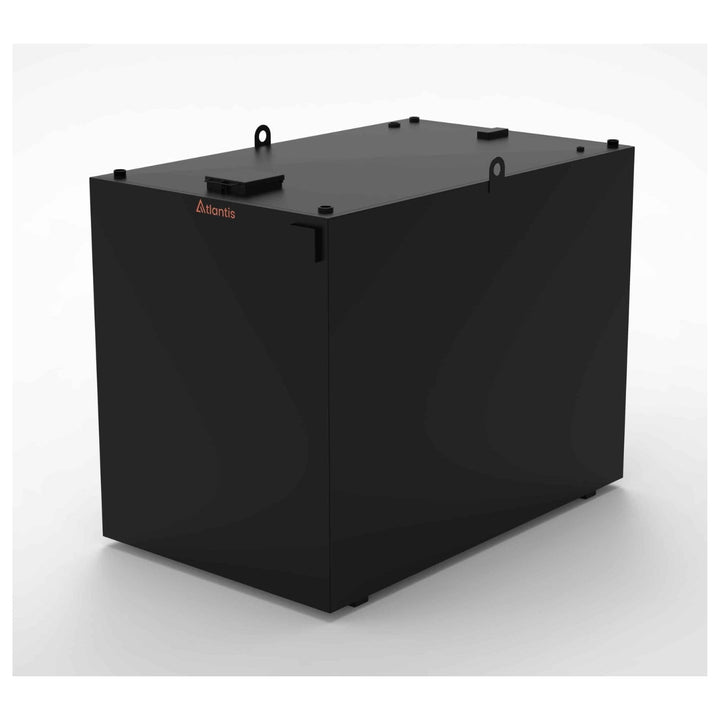

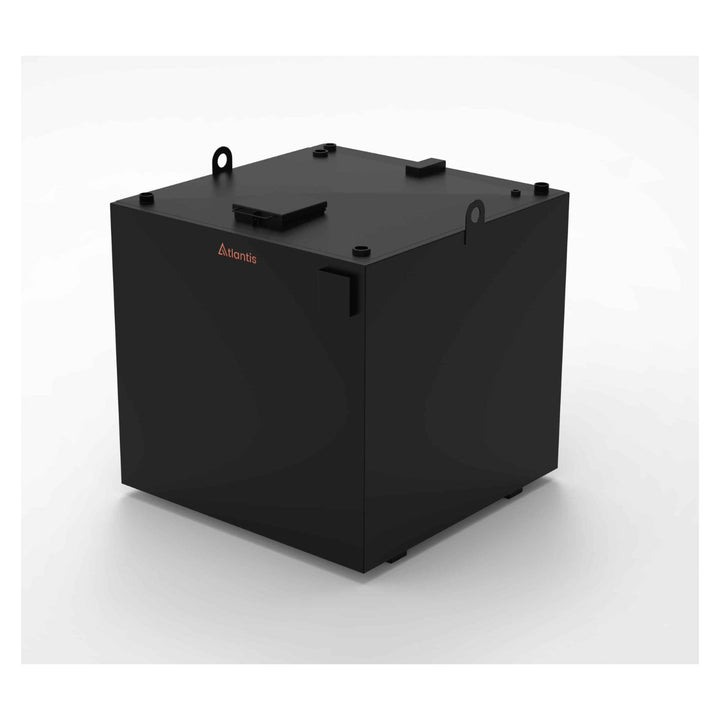

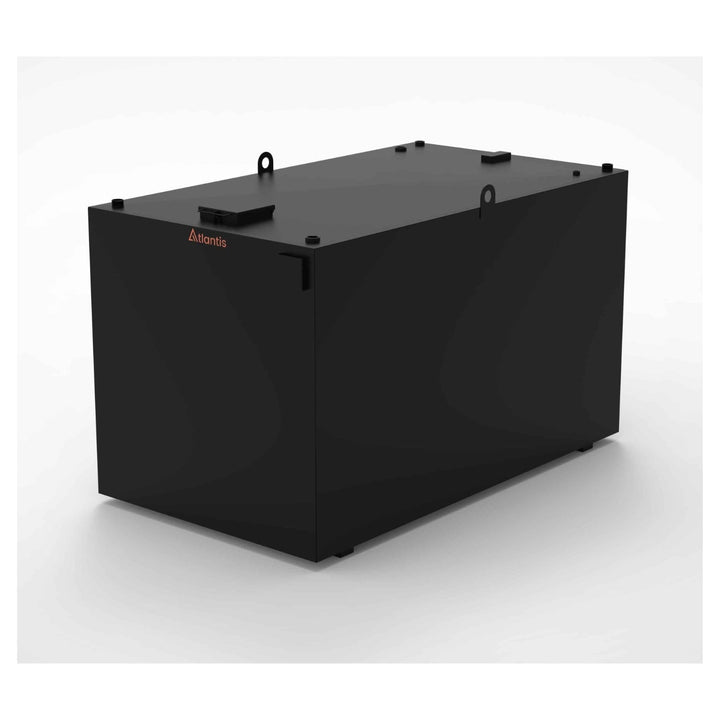

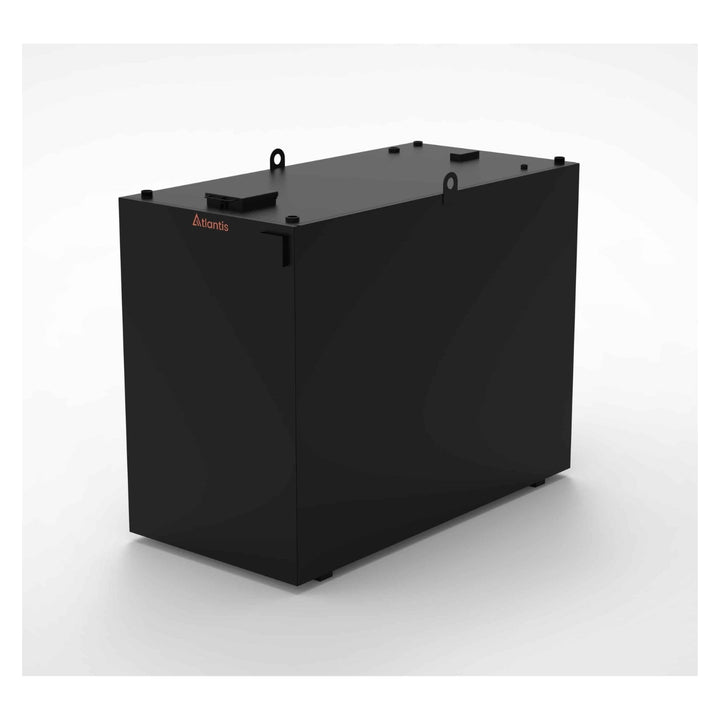

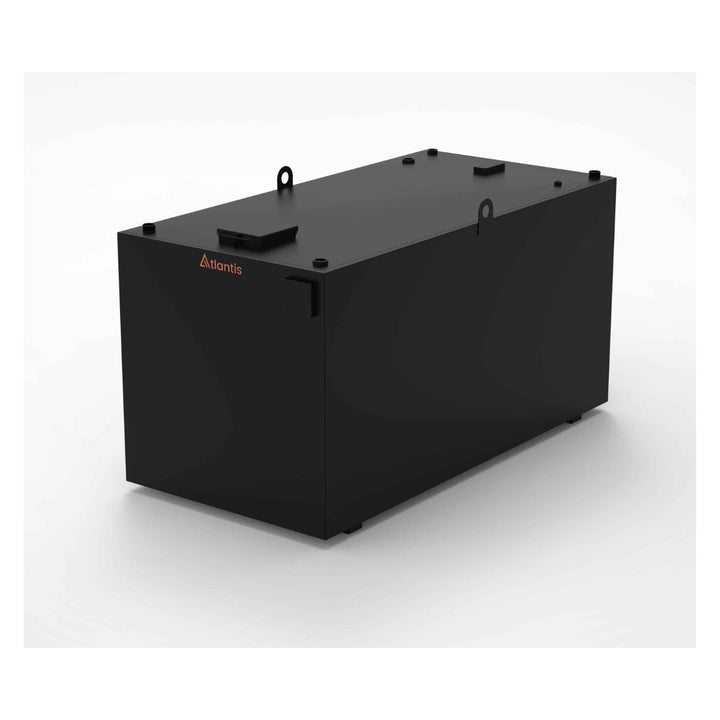

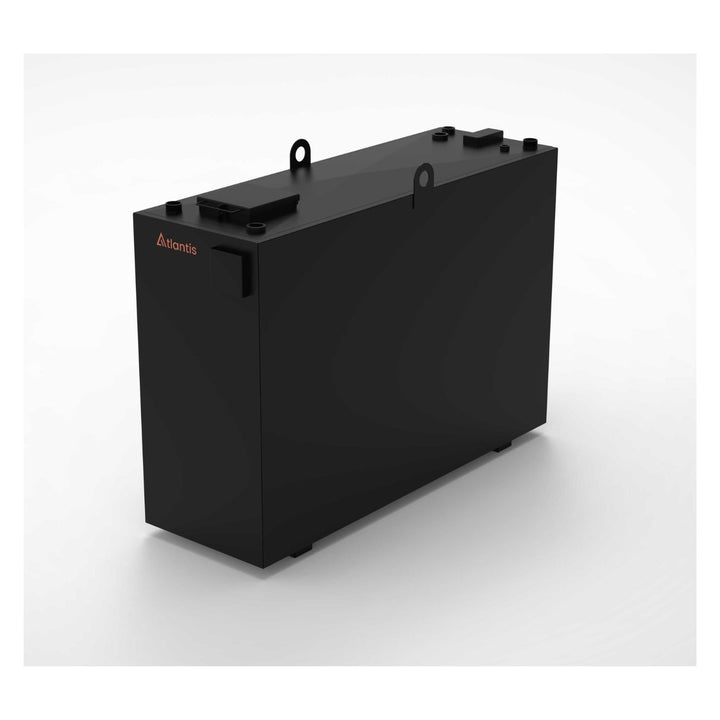

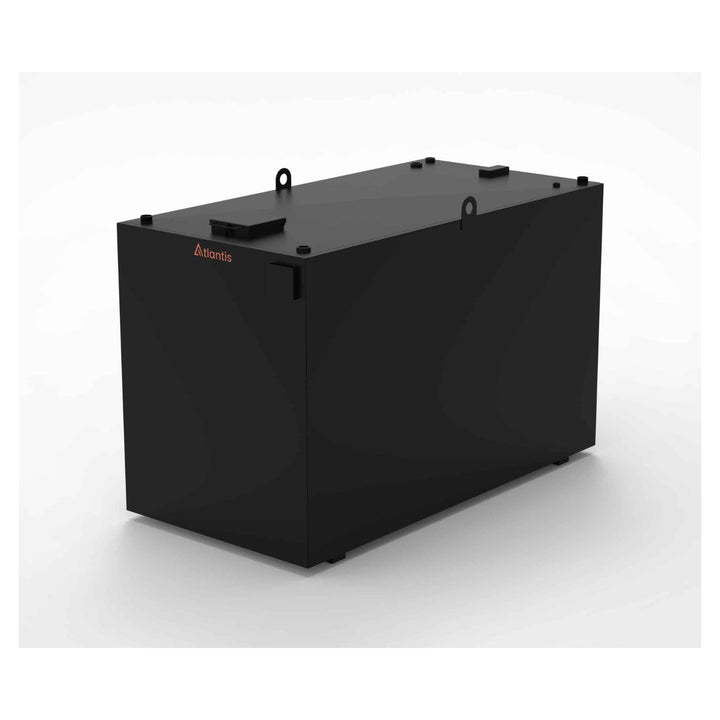

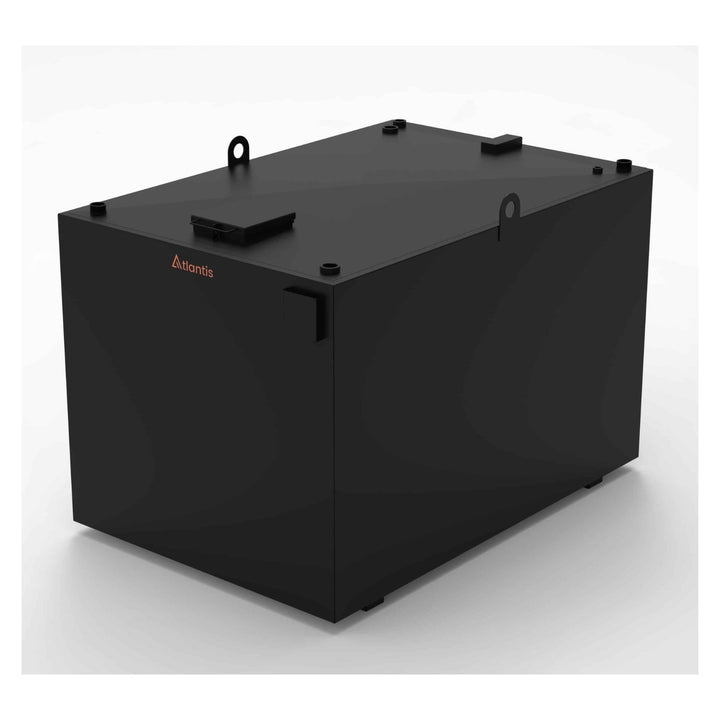

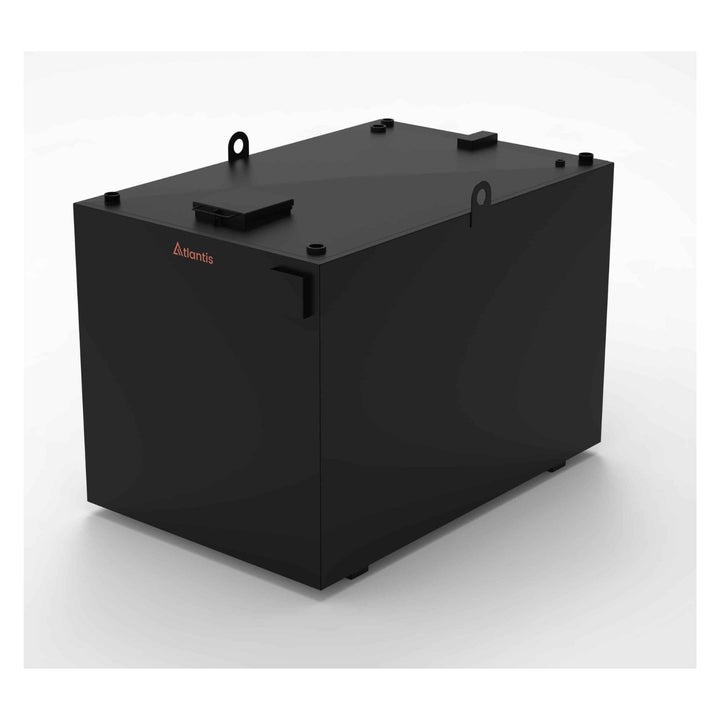

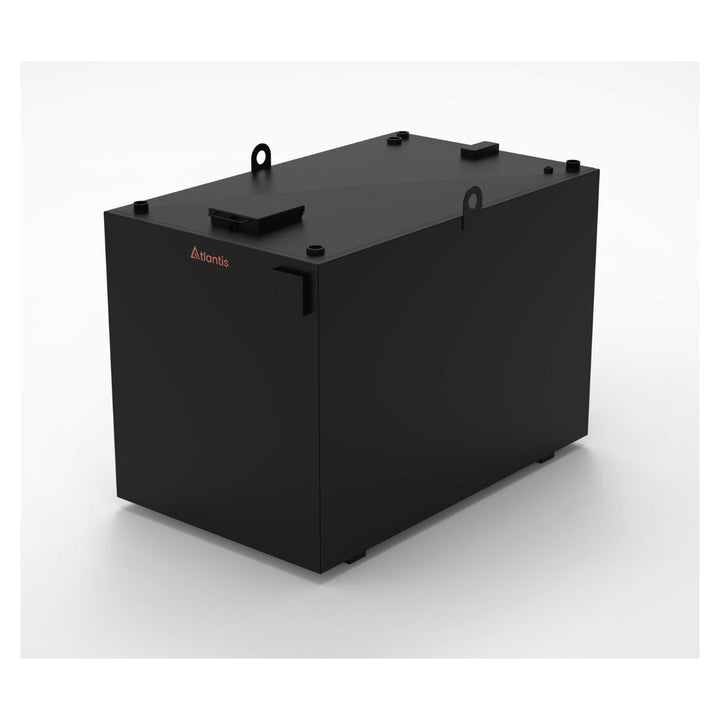

Atlantis Steel Bunded Waste Oil Tanks

A 1050 Litre Steel Bunded Waste Oil Tank which is suitable for commercial applications. The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations. This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.

These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop. Furthermore, these tanks are supplied with one coat primer and one top coat which is normally green in colour as standard. Atlantis recommend, painting your steel tank once a year to achieve the maximum lifespan.

Click here for: Steel Bunded Waste Oil Tank Detail Sheet

Dimensions:

• Length: 1830mm
• Width: 610mm
• Height: 1220mm
• Weight: 260Kg

Specifications:

• 1050 Litre (240 Galls) capacity
• 1 No 2” port
• 1 No 2″ internal suction port
• 1 No 1.5″ port for inner tank gauge
• 1 No 1.5″ port for bund gauge
• Tank vent
• 300mm square lockable hinged lid
• 300mm square strainer
• Lifting eyes
• 50mm x 100mm bearers
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Black

Warranty:

• 10-Year warranty

Compliance:

This tank complies with: Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5.
