Key Features:
- Offered in size of 400mm H x 1000mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T410K

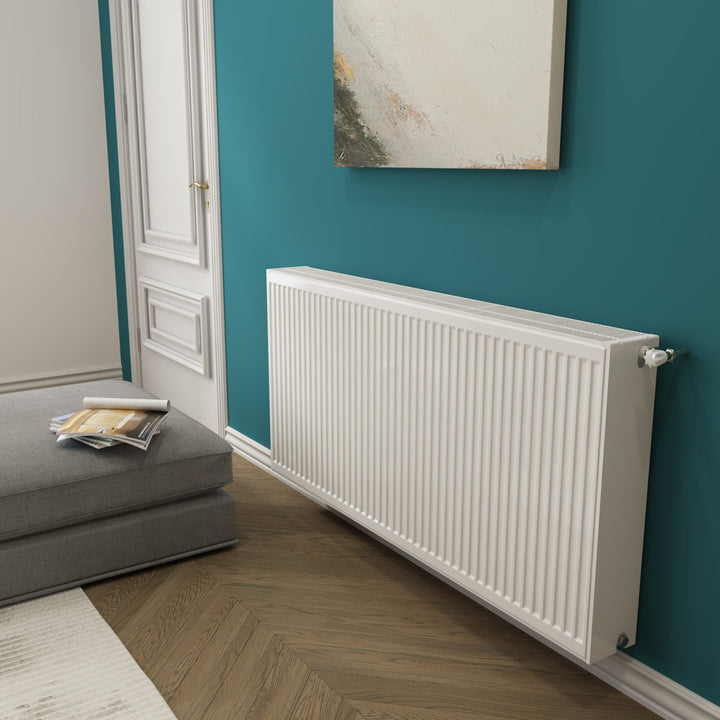

- Product Type: Panel Radiator
- Radiator Height: 400 mm
- Radiator Width: 1000 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1000 mm
- Heat Output Delta T60: 2299 Watts / 7844 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 400mm H x 1200mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T412K
- Product Type: Panel Radiator
- Radiator Height: 400 mm
- Radiator Width: 1200 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1200 mm
- Heat Output Delta T60: 2759 Watts / 9413 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 400mm H x 1400mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T414K
- Product Type: Panel Radiator
- Radiator Height: 400 mm
- Radiator Width: 1400 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1400 mm
- Heat Output Delta T60: 3219 Watts / 10982 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 500mm H x 800mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T508K
- Product Type: Panel Radiator
- Radiator Height: 500 mm
- Radiator Width: 800 mm
- Radiator Depth: 160 mm
- Tapping Centres: 800 mm
- Heat Output Delta T60: 2204 Watts / 7517 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 500mm H x 1000mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T510K
- Product Type: Panel Radiator
- Radiator Height: 500 mm
- Radiator Width: 1000 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1000 mm
- Heat Output Delta T60: 2754 Watts / 9397 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 500mm H x 1200mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T512K
- Product Type: Panel Radiator
- Radiator Height: 500 mm
- Radiator Width: 1200 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1200 mm
- Heat Output Delta T60: 3305 Watts / 11276 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 500mm H x 1400mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T514K
- Product Type: Panel Radiator
- Radiator Height: 500 mm
- Radiator Width: 1400 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1400 mm
- Heat Output Delta T60: 3856 Watts / 13155 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 500mm H x 1600mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T516K
- Product Type: Panel Radiator
- Radiator Height: 500 mm
- Radiator Width: 1600 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1600 mm
- Heat Output Delta T60: 3856 Watts / 13155 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 400mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T604K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 400 mm
- Radiator Depth: 160 mm
- Tapping Centres: 400 mm
- Heat Output Delta T60: 1273 Watts / 4343 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 600mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T606K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 600 mm
- Radiator Depth: 160 mm
- Tapping Centres: 600 mm
- Heat Output Delta T60: 1592 Watts / 5429 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 800mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T608K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 800 mm
- Radiator Depth: 160 mm
- Tapping Centres: 800 mm
- Heat Output Delta T60: 2546 Watts / 8686 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 1000mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T610K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 1000 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1000 mm
- Heat Output Delta T60: 3182 Watts / 10857 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 1200mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T612K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 1200 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1200 mm
- Heat Output Delta T60: 3819 Watts / 13028 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 1400mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T614K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 1400 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1400 mm
- Heat Output Delta T60: 4455 Watts / 15200 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 600mm H x 1600mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T616K
- Product Type: Panel Radiator
- Radiator Height: 600 mm
- Radiator Width: 1600 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1600 mm
- Heat Output Delta T60: 5091 Watts / 17371 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 750mm H x 800mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T708K
- Product Type: Panel Radiator
- Radiator Height: 750 mm
- Radiator Width: 800 mm
- Radiator Depth: 160 mm
- Tapping Centres: 800 mm
- Heat Output Delta T60: 3060 Watts / 10441 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 750mm H x 1000mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T710K
- Product Type: Panel Radiator
- Radiator Height: 750 mm
- Radiator Width: 1000 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1000 mm
- Heat Output Delta T60: 3825 Watts / 13051 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 750mm H x 1200mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T712K
- Product Type: Panel Radiator
- Radiator Height: 750 mm
- Radiator Width: 1200 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1200 mm
- Heat Output Delta T60: 4590 Watts / 15661 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Key Features:
- Offered in size of 750mm H x 1400mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T714K
- Product Type: Panel Radiator
- Radiator Height: 750 mm
- Radiator Width: 1400 mm
- Radiator Depth: 160 mm
- Tapping Centres: 1400 mm
- Heat Output Delta T60: 5355 Watts / 18271 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard.
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
Benefits of the Kartell Kompact Type 33 Triple Panel Radiator
-
High Heat Output for Maximum Warmth: The triple panel, triple convector design delivers exceptional heat efficiency perfect for keeping larger rooms warm and cosy, even in winter.
-
Energy Efficient Heating Solution: Built to heat your home faster and more efficiently, helping you reduce energy bills and stay comfortable year-round.
-
Space-Saving Design: Despite its powerful performance, this radiator has a compact footprint, making it ideal for both small and large spaces without sacrificing style or output.
-
Minimalist Modern Look: The sleek, white finish blends effortlessly with all interior styles, adding clean, modern elegance to your home décor.
-
Built to Last: Manufactured from high-quality materials for long-term durability engineered to withstand daily use and resist corrosion over time.
-
Quick and Easy Installation: Designed for a hassle-free fitting process, making it a great upgrade for DIYers or professional installers alike.
-
Low Maintenance: Smooth surface and durable finish allow for easy cleaning and maintenance, keeping your radiator looking like new for years.
-
Trusted Brand & Long Warranty: Backed by Kartell’s manufacturer warranty, offering peace of mind and reliable performance you can count on.
-
Ideal for Any Room: Perfect for living rooms, bedrooms, hallways, and kitchens, offering consistent heating wherever you need it.
-
Boosts Home Comfort & Value: A stylish, high-performance radiator that improves the warmth and aesthetic of your home adding comfort and appeal for everyday living or resale value.
Key Features:
- Offered in size of 400mm H x 800mm W
- Comes in an exclusive White colour
- Style and Design looks great
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Complete with installation package including brackets / bolts / vents and plugs / 4 fixing points / 1/2 tappings
- Complete with factory-fitted top grilles and side panels
Technical Specifications:
- Brand: Kartell
- Model No: T408K
- Product Type: Panel Radiator
- Radiator Height: 400 mm
- Radiator Width: 800 mm
- Radiator Depth: 160 mm
- Tapping Centres: 800 mm
- Heat Output Delta T50: 1453 Watts / 4957 BTUs
- Heat Output Delta T60: 1839 Watts / 6275 BTUs
- Radiator Style: Modern
- Radiator Material: Steel
- Radiator Colour: White
- Radiator Finish: Gloss
- Orientation: Horizontal
- Mounting Type: Wall
- Radiator Panels: Triple Panel
- Guarantee Length: 10 Years
Supplied with: Product includes Brackets, Bolts, Vents and Plugs, Fixing Kit, Air Vent, and Blanking Plug as standard
Not Included: Accessories such as Valves, Pipe Covers, and Towel Bar/Hangers are sold separately.
SKU | |
Brand | Kartell |
Manufacturer ID | T408K |
Height | 400 mm |
Width | 800 mm |
Length | |
Colour | White |
Size (mm) | 400mm x 800mm |
Finish | White |
Material | Steel |
Thickness | |
Projection | |
Flush Type | |
Quick Release Seat | |
Soft Close Seat | |
Product Highlights | |
Depth | 160 mm |
Fuel Type | |
Pipe Centres | 800 mm |
Wall To Pipe Centres | |
Heat Output BTUs (Delta T60) | 6275 |
Heat Output Watts (Delta T60) | |
Heat Output Watts (Delta T50) | 1453 |
Supplied With | Kartell UK |
Style | |
erp rating | |
Radiator Panels / Columns | Triple Panel |
Manufacturer ID:
Length:
Width:
Height:
Panel Height:
Depth:
Size (mm):
Water Capacity:
Fuel Type:
Radiator Panels Columns:
Heat Output (Watts) ΔT50:
Heat Output (BTUs) ΔT50:
Heat Output (Watts) ΔT60:
Heat Output (BTUs) ΔT60:
Heat Output (Watts) ΔT70:
Heat Output (BTUs) ΔT70:
Style:
Material:
Finish:
Colour:
Brand:
Shape:
Number of sinks:
Material thickness:
Diameter Ø:
Operating Pressure (Bar):
Immersion Heater Rating:
