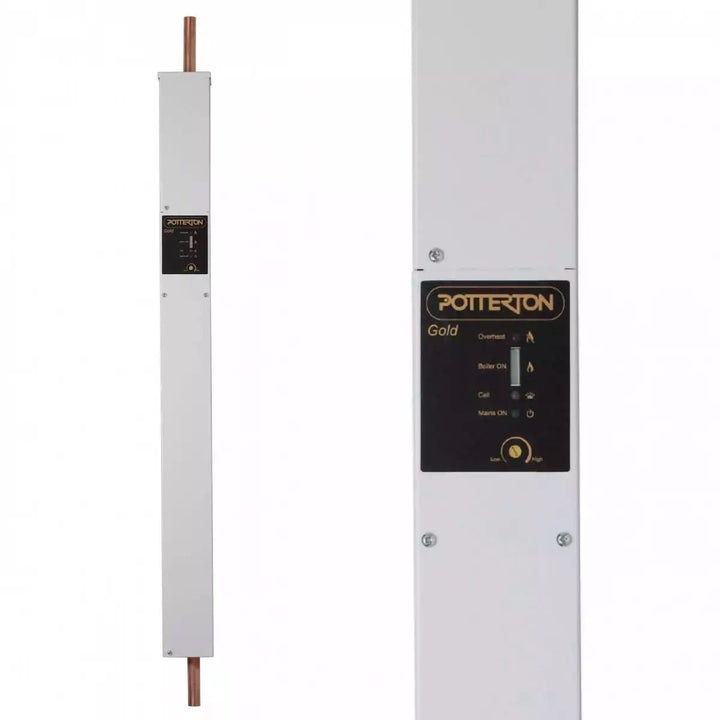

Potterton Gold Heat Only Electric Boiler - 9KW

• Quiet in operation.
• No flue or fuel tank required.
• Pump run-on facility.
• 22mm Pipe work for all models
• Suitable for pressurized or open vented systems.
• Soft start and zero volt switching to avoid power surges.
• Min/max control adjusts the water temperature output from the boiler.
• No requirement for annual safety certificate.
• Electric boiler for wet central heating systems.
• Domestic hot water is available from a cylinder.
• Can be used in a sealed or open vented system installations.
• Operates from standard mains voltage programmers, room thermostats, etc.
• Solid-state technology enables zero volt switching.
• Soft start and soft modulation.
• Front panel operation indicators.
• User adjustment of the operating temperature on the front panel.
• Self check every time it operates.
• Electrical tails terminations inside the boiler.
• Safety trip for no water or no flow situations.
• Optical isolation to enable connection of more boilers on single or three phase supplies.
• Uses standard radiators, programmer, pump, room thermostat and thermostatic radiator valves.

• Height: 1050mm
• Width: 90mm
• Depth: 90mm
• Boiler Type: Electric
• Heat Output: 9 kW
• Guarantee: 2 Years



  What’s in the Box – Potterton Gold 9kW Electric Boiler

  When you purchase the Potterton Gold 9kW Electric Boiler, you receive everything needed for a straightforward installation into a compatible wet central heating system:

  • 1 x Potterton Gold 9kW Electric Boiler Unit
    Compact and lightweight electric boiler designed for sealed or open vented heating systems.

  • Pre-wired Electrical Tail Connections
    Ready for integration with your mains power supply.

  • Pump Run-On Facility (Pre-integrated)
    Built-in functionality for efficient system operation and to prolong component life.

  • Built-In Solid-State Controls
    Soft start and zero-volt switching for smoother operation and reduced wear on electrical components.

  • Min/Max Temperature Control Dial
    Allows front-panel adjustment of water temperature output to suit your heating needs.

  • LED Status Indicators
    Clearly visible front-panel lights for system status, operation, and troubleshooting.

  • Integrated Safety Features
    Includes safety trip protection for low water or no flow scenarios and self-check functionality on each start-up.

  • Comprehensive Installation & User Manual
    Detailed guide with step-by-step installation instructions, operating guidance, and safety information.





The lightweight design makes for easy handling, whilst compatibility with standard radiators, programmers, pumps, room thermostats and thermostatic radiator valves gives you hassle-free installation. Low maintenance and long-life reliability Solid state technology and the absence of moving parts ensure a longer service life, while our 2 year on-site parts and labor warranty* gives added peace of mind. You don't even need an annual safety certificate! Controllable efficiency as well as a soft start and zero volt switching to help avoid power surges, min/max controls make it easy to adjust the water temperature output from the boiler, helping you get the most from wet central heating. Easy to use A front panel indication gives you an 'at a glance' reading for the boiler state. Compact and discreet Seek and 'slim-fit' in construction, it also runs silently - so you'll hardly know it's there.

This model is not for use with underfloor heating. The installation must be carried out in accordance with the relevant requirements of: The appropriate Building Regulations, either The Building Regulations, The Building Regulations (Scotland) or Building Regulations (Northern Ireland).The Water Fittings Regulations or Water Byelaws in Scotland.

IT IS THE INSTALLER'S RESPONSIBILITY TO ENSURE THAT THE INSTALLATION DOES NOT CONTRAVENE THE REQUIREMENTS OF THE WATER SUPPLY REGULATIONS, BUILDING REGULATIONS OR LOCAL AUTHORITY REGULATIONS.

The boiler must be installed by a qualified, competent tradesman who is aware of and will comply with all relevant standards that are applicable: e.g. Building Regulations, the Local Authority Regulations, the Water Supply Regulations and undertaking the relevant British Standards. The system must be flushed in accordance with BS 7593 and in accordance with the supplied instructions and drawings to ensure proper operation. The boilers contain a very small amount of water, and so require a sufficient flow rate of water to ensure proper operation. The 4kW and 6kW product requires a minimum flow of 6 litres/minute, and the 9kW, 11kW and 12kW require a minimum flow of 12 litres/minute. Insufficient flow of water through the boiler will cause nuisance trip outs. The maximum temperature differential between input and output of the boiler must not exceed 14C. If the temperature across the boiler exceeds

This then the flow rate is too low and will potentially damage the boiler. Set the flow rate to give 5 -& 10C across the boiler on full heat. The output FLOW pipe at the TOP of the boiler is identified RED. The input RETURN pipe is located at the BOTTOM . Ensure that the direction of flow is correct through the boiler after installation. Set the pump on maximum flow rate.

Use standard size pipework. DO NOT SOLDER DIRECTLY ONTO THE BOILER TAILS . Push-on or compression fittings are suitable for connecting directly onto the boiler tails. Fit a 22mm elbow to the top of the boiler and after 100 - 150mm of horizontal pipework fit an automatic air vent, or connect the expansion pipework on open vented systems to provide a route for air to vent. DO NOT FIT THE AAV DIRECTLY ABOVE THE BOILER.

The electric boiler is suitable for operation in sealed or open vented systems. It is also suitable for schemes such as heating only, Y plan, S plan, zone heating, under floor heating, micro-bore via a manifold, etc. If you are unsure about your application regarding suitability of the boiler, please do not hesitate to contact your local supplier or Potterton Gold directly. The cost of installation can be reduced if the electric boiler is used for heating only. Use a direct type cylinder with immersion elements and a time clock for the domestic hot water, then connect the electric boiler directly to the heating circuit and control it by a programmable room thermostat. If the radiator circuit has a continuously open route for the water flow, then a bypass is not required. The boiler sizing is for heating only in this case and does not have to be increased to allow for domestic hot water as well.

Ensure there is always an open route for the water to flow in any installation, to meet the required minimum flow rate of the boilers and to allow for the pump over run. If an open route through the heating circuit can not be guaranteed, then a bypass, fitted with an automatic bypass valve, must be fitted which meets the required minimum flow rates for the boiler. The bypass must have a minimum of either 2 meters of 22mm continuous pipework, or be routed through a radiator with minimum dimensions of 600 x 600mm. Automatic pressure opening valves must be used with the bypass circuit, ensure they are installed correctly as per the manufacturer's instructions. Gate valves are not suitable.
